TD04HL 16T 49189-00016 43.43/56.02mm 4+4 blades High performance point milling aluminum 2618/billet compressor wheel

Brand Name : no

Model Number : TD04HL

Place of Origin : China

MOQ : 1PC

Payment Terms : TT,western union ,paypal

Supply Ability : 1000pcs

Delivery Time : 3-7 days

Packaging Details : neutral packing

Contact Now

1. MODEL:TD04HL 16T FORWARD

2. TD04HL 16T 49189-00016 43.43/56.02mm 4+4 blades High performance point milling Turbo milling/aluminum 2618/billet compressor wheel for 49189-00561/49189-01330/49189-01335/49189-01350/49189-01355/49189-01450/49189-01455/49189-02310/49189-03200/49189-03201/49189-03210/49189-03211/49189-05000/49189-05010/49189-05100/49189-05101/49189-05102/49189-05111/49189-05112
3.Size:

Nose diameter:10.00mm

Inducer:43.43mm

Exducer:56.02mm

Tapered tip exducer:60.10mm

Tip height:4.53mm

Super back:1.83mm

Overall height:26.18mm

Bore size:5.00mm

bore type:through

Trailing angle:45 degree

Cutback:0.0mm

SP Height angle:-8.00

Blades height:22.50mm

Splitter height:15.73mm

4+4 blades

Forward rotation

Tapered tip angle:30 degree

Fits OE Compressor Housing

4.High quality and competitive price.

5.Any questions please send email to me.

Skype: maxabledieselparts

Wechat/Whatsapp:+86-18018657719

TD04HL 16T 49189-00016 43.43/56.02mm 4+4 blades High performance point milling aluminum 2618/billet compressor wheel

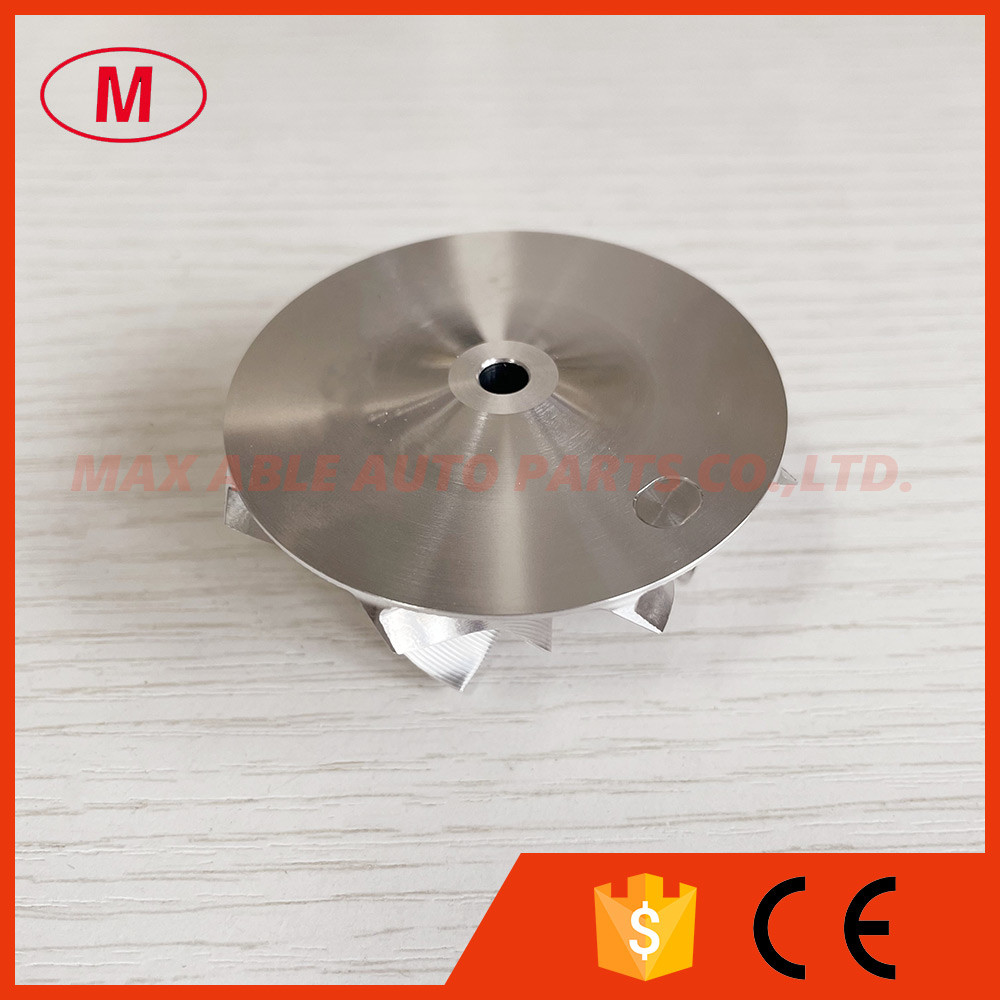

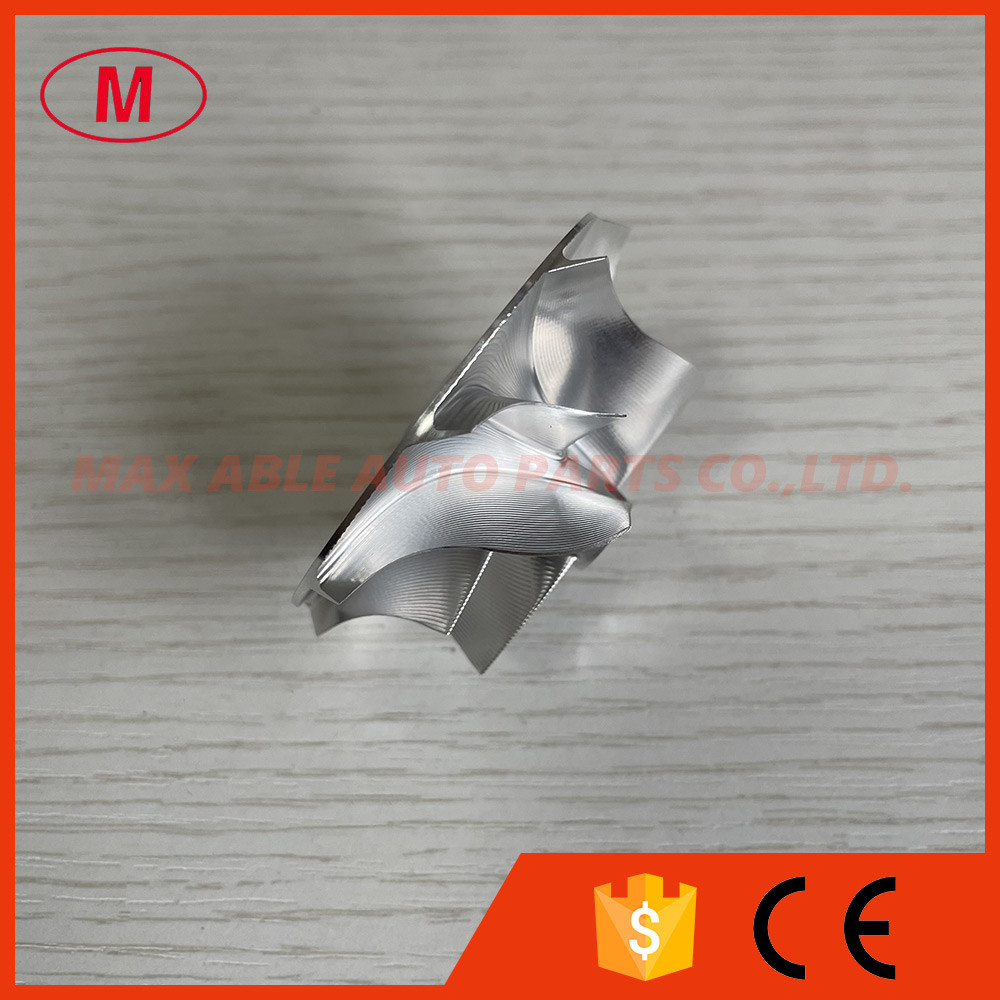

TD04HL 16T 49189-00016 43.43/56.02mm 4+4 blades High performance point milling aluminum 2618/billet compressor wheel Images
