K26 47.42/65.95mm 5326-123-2202 6+6 blades turbo milling/aluminum 2618/billet compressor wheel for 5324-970-7200

1.Model:K26 forward
2.K26 47.42/65.95mm 5326-123-2202 6+6 blades turbo milling/aluminum 2618/billet compressor wheel for 5324-970-7200

3.SIZE:

Nose Diameter:13.52mm

inducer:47.42mm

Exducer:65.95mm

Tapered tip exducer:70.39mm

Tip height:4.85mm

Superback:2.70mm

Overall height:33.64mm

bore size :7.02mm

Trailing angle:65

Cutback:0.0

Splitter height:19.45mm

sp height angle:-9.00

Blade height:26.65mm

6+6blades

forward rotation

Tapered tip angle:30 degree

It is for OE compressor housing

4.Good quality and competitive price

5. aluminum 2618/milling/ billet high performance compressor wheel

6.Application:

5324-970-7200

7.Please send email to me or talk to me on online ,if you want to know more details.

All the compressro wheel have been balanced.

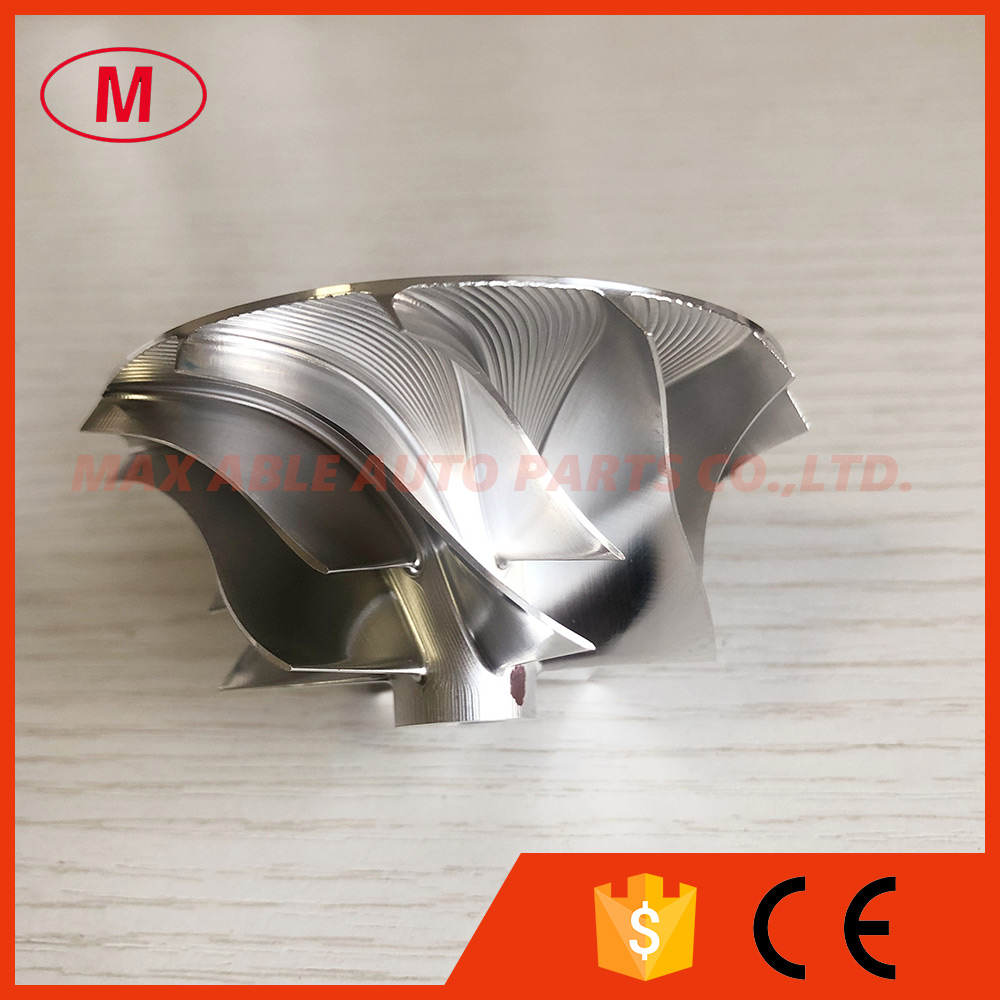

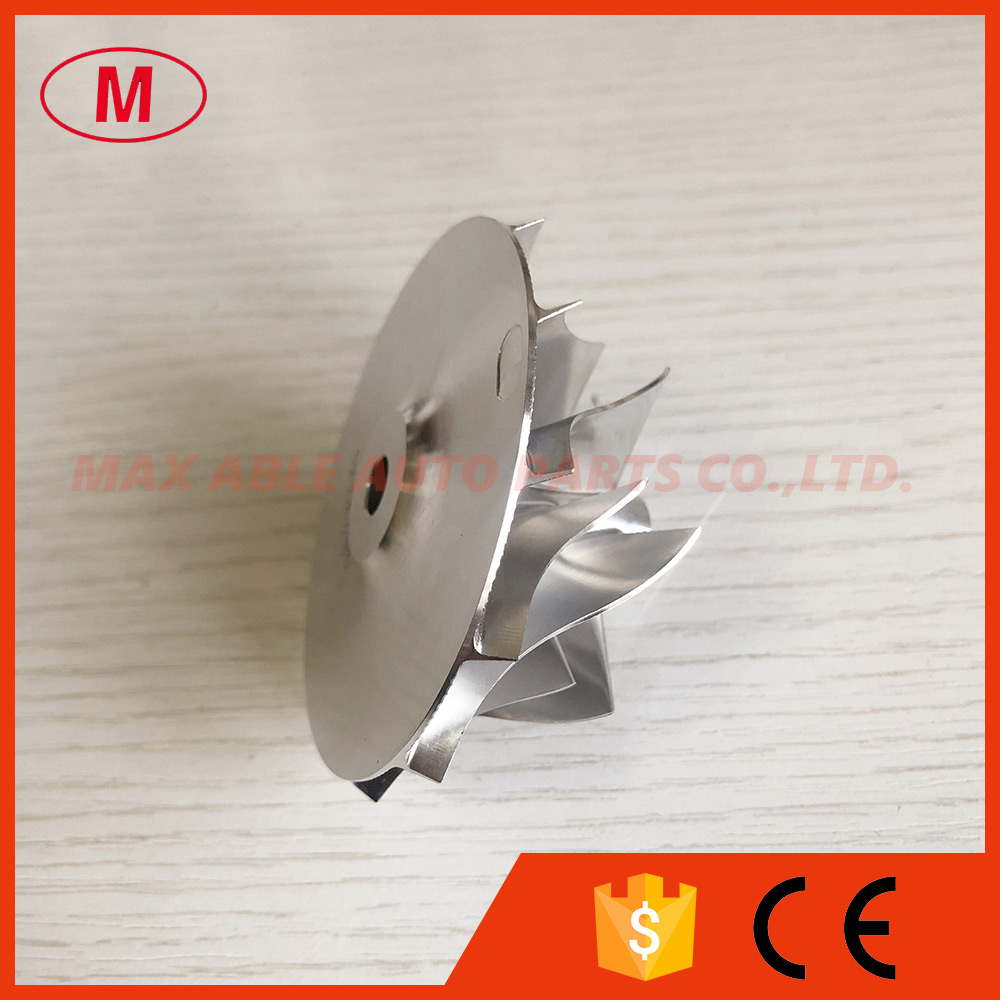

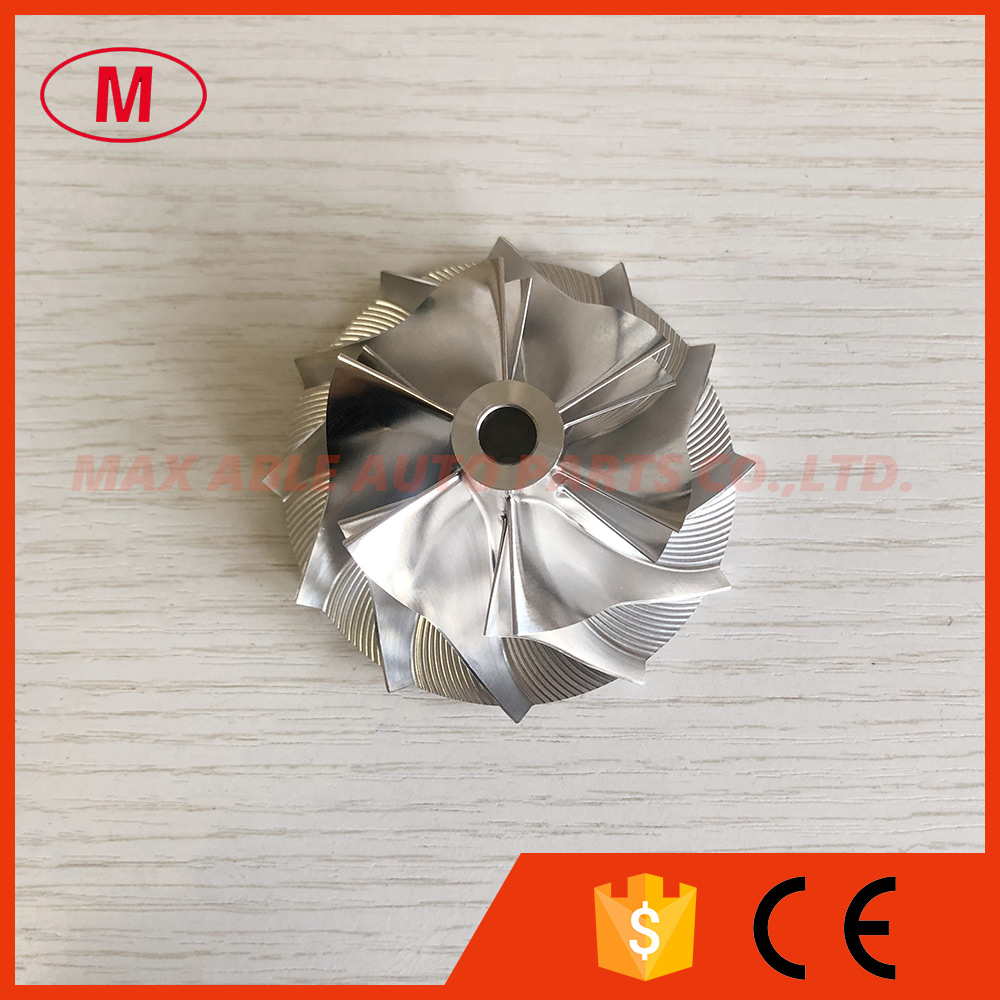

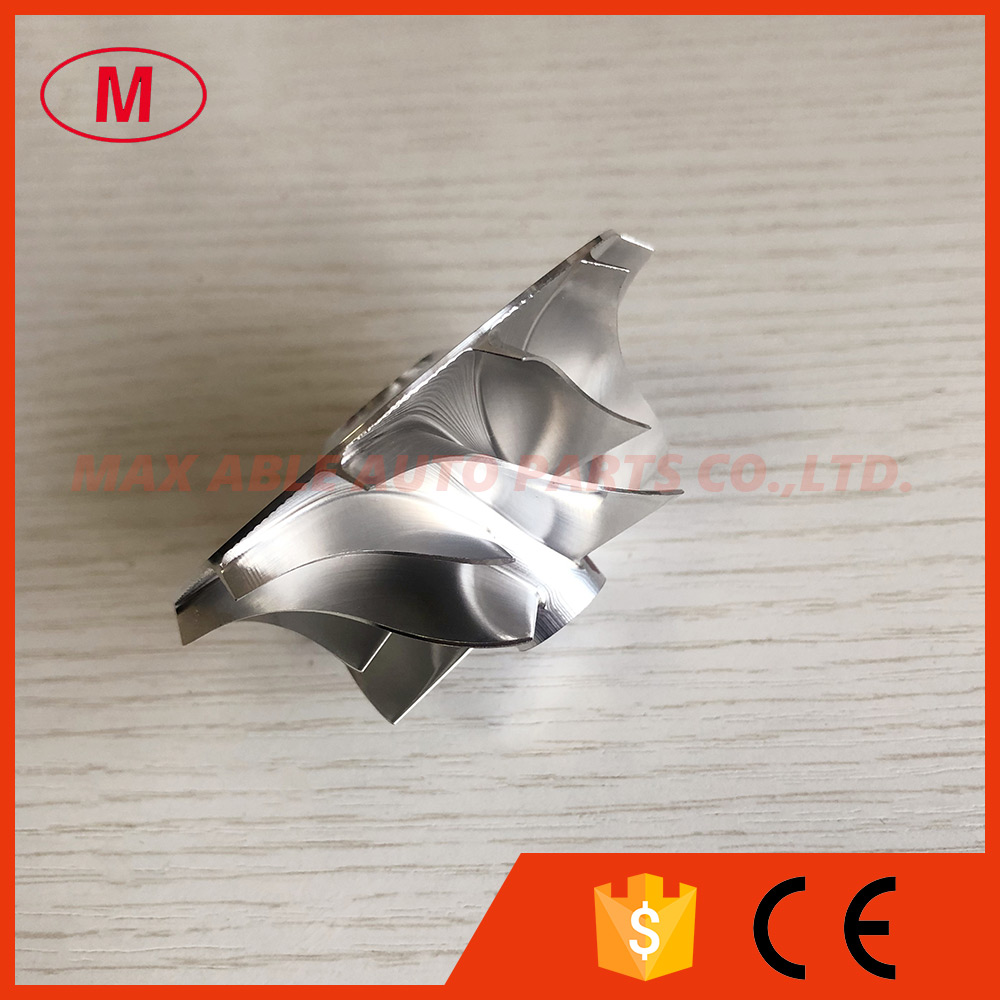

K26 47.42/65.95mm 5326-123-2202 6+6 blades turbo milling/aluminum 2618/billet compressor wheel for 5324-970-7200 Images
