RHF5 reverse 54.50/70.00mm 7+7 blades High performance Turbo milling/aluminum 2618/billet compressor wheel

Product Categories

Max Able Auto Parts Co.,Ltd.

Contact Now

Brand Name : NO

Model Number : RHF5

Certification : ISO

MOQ : 1PC

Payment Terms : TT ,western union ,paypal

Supply Ability : 1000

Delivery Time : 3-7 days

Packaging Details : neutral packing

Contact Now

1. MODEL:RHF5 reverse

2.RHF5 reverse 54.50/70.00mm 7+7 blades High performance Turbo Billet/milling/aluminum 2618 compressor wheel

3.Size:

Nose diameter:11.70mm

Inducer:54.50mm

exducer:70.00mm

Tapered tip exducer:72.90mm

Tip height:3.51mm

Superback:1.53mm

bore size :5.10mm

bore type:through

Overall height:30.00mm

Cutback:3.0

Trailing Angle:60

SP height angle:0.00

Blade height:26.37mm

Splitter height:13.00mm

7+7 blades reverse

It is custom size ,please check carefully before buying.

Tapered tip Angle:30 degree

4.High quality and competitive price.

5.if you want more details, please send email to me.

All the compressor wheels have been balanced.

Skype: maxabledieselparts

Wechat/whatsapp:+ 86-18018657719

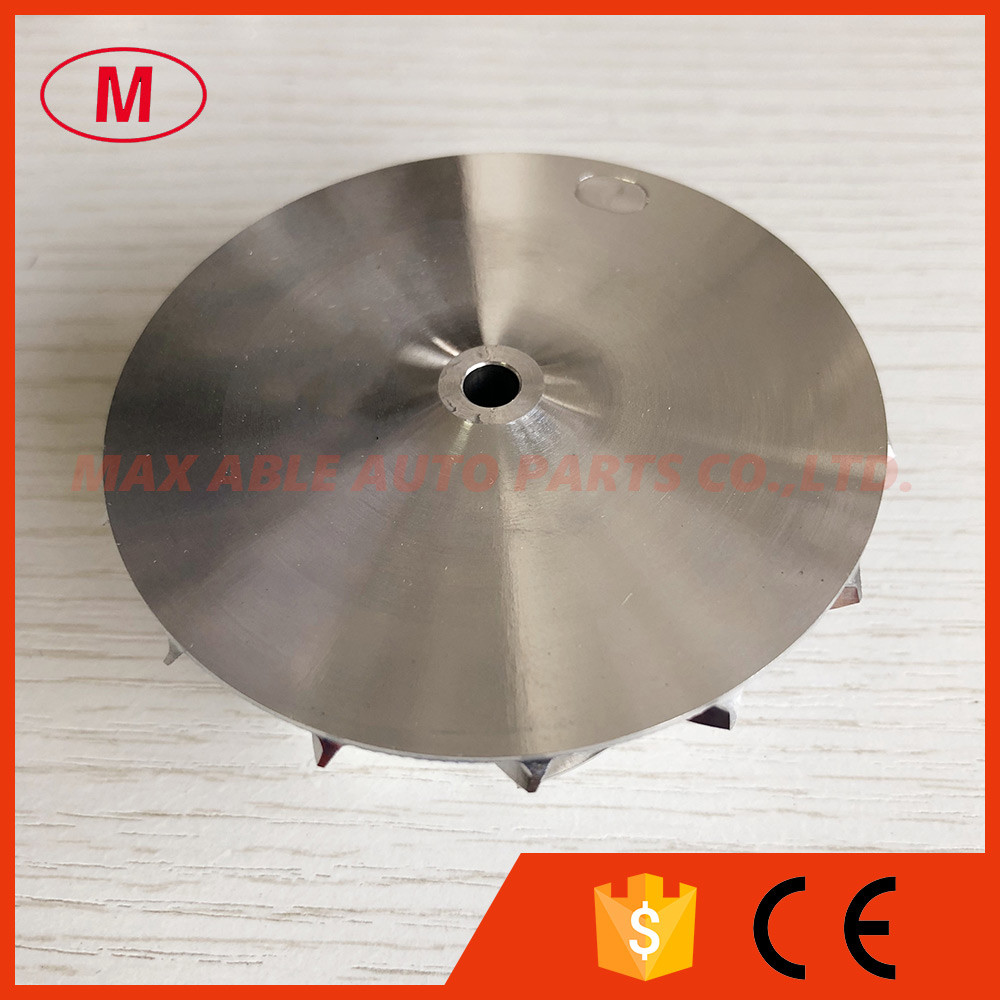

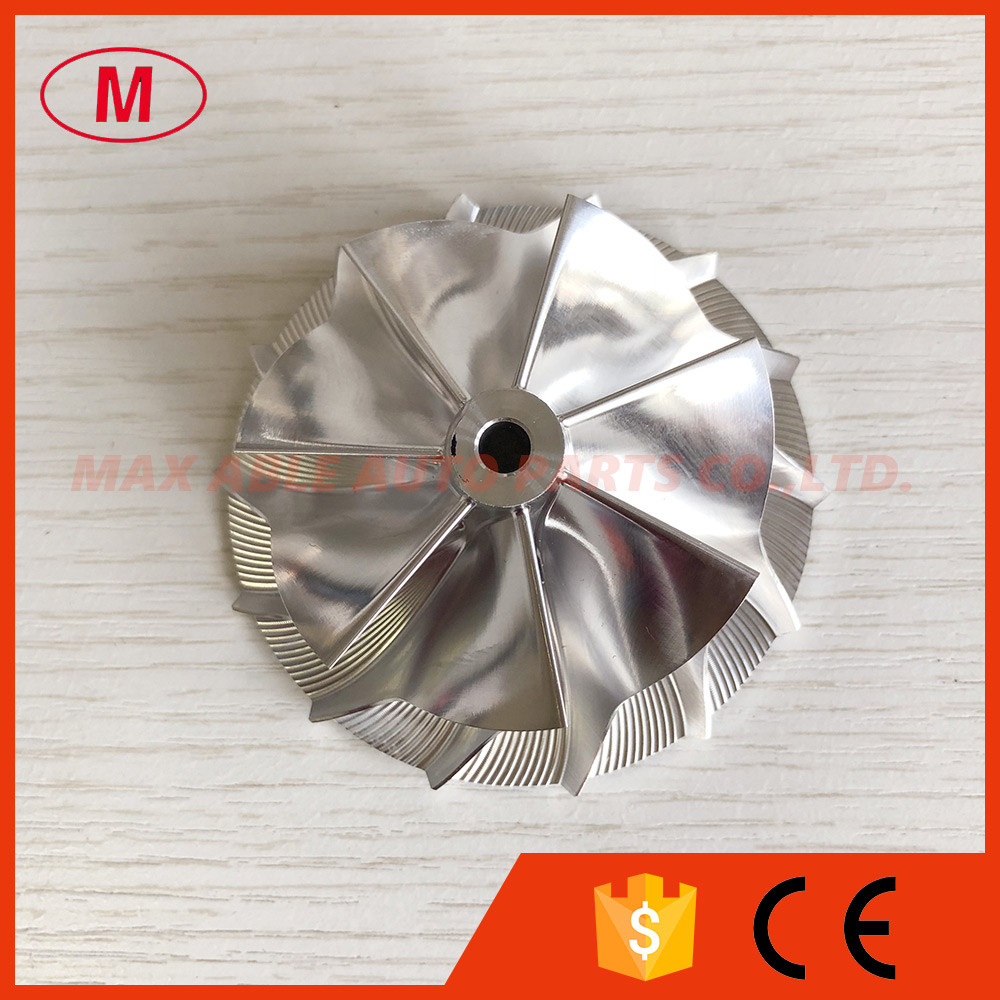

RHF5 reverse 54.50/70.00mm 7+7 blades High performance Turbo milling/aluminum 2618/billet compressor wheel Images
