CT10 40.60/55.69mm 17201-0L020HF 11+0 blades turbo milling/aluminum 2618/billet compressor wheel FOR Upgrade 17201-0L020

Product Categories

Max Able Auto Parts Co.,Ltd.

Contact Now

Brand Name : NO

Model Number : CT10

MOQ : 1PC

Payment Terms : TT ,western union ,paypal

Supply Ability : 1000

Delivery Time : 3-7 days

Packaging Details : neutral packing

Size : 40.60/55.69mm

Type : Turbochargers

Contact Now

1. MODEL:CT10 forward

2. CT10 40.60/55.69mm 17201-0L020HF 11+0 blades turbo milling/aluminum 2618/billet compressor wheel FOR Upgrade 17201-0L020

3.Size:

Nose diameter:10.78mm

inducer:40.60mm

Exducer:55.69mm

Tapered tip exducer:58.12mm

Tip height:4.73mm

Superback:2.65mm

Overall height:26.20mm

Bore size:5.10mm

bore type:through

Trailing angle:60 degree

Cutback:0.0mm

Blades height:20.17mm

Splitter height:0.00mm

Sp height angle:0.0

11+0 blades

forward rotation

Tapered tip angle:18 degree

It is custom size ,please check carefully before buying.

4.High quality and competitive price.

5.Any questions please send email to me,we have many size.

All the compressor wheel have been balanced.

Skype: maxabledieselparts

Wechat/Whatsapp:+86-18018657719

CT10 40.60/55.69mm 17201-0L020HF 11+0 blades turbo milling/aluminum 2618/billet compressor wheel FOR Upgrade 17201-0L020

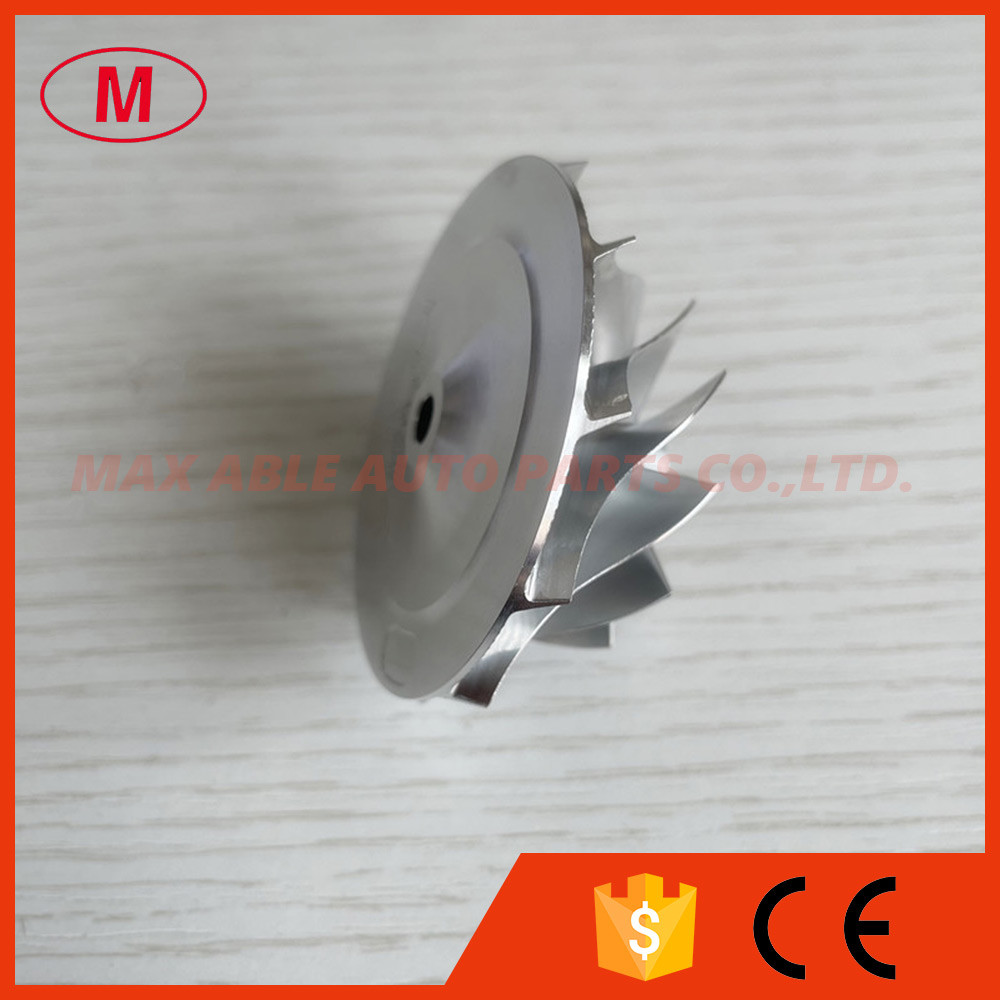

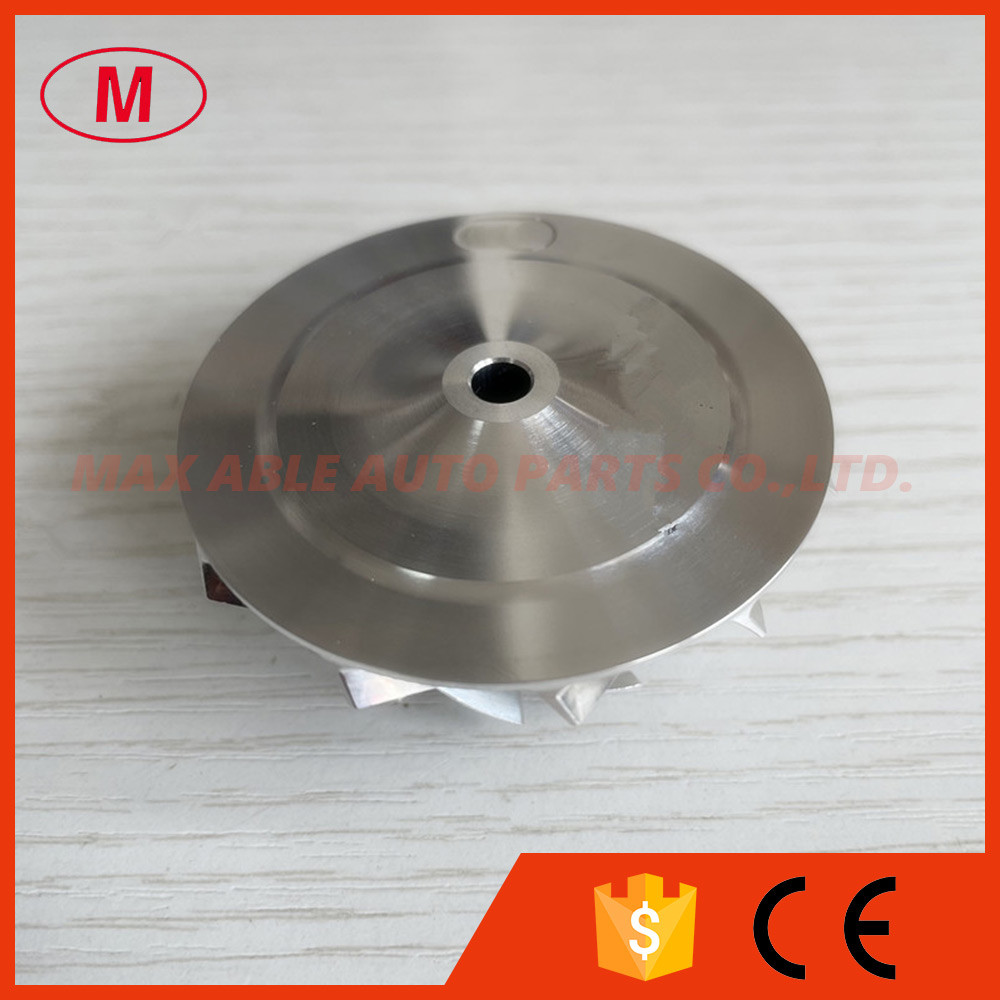

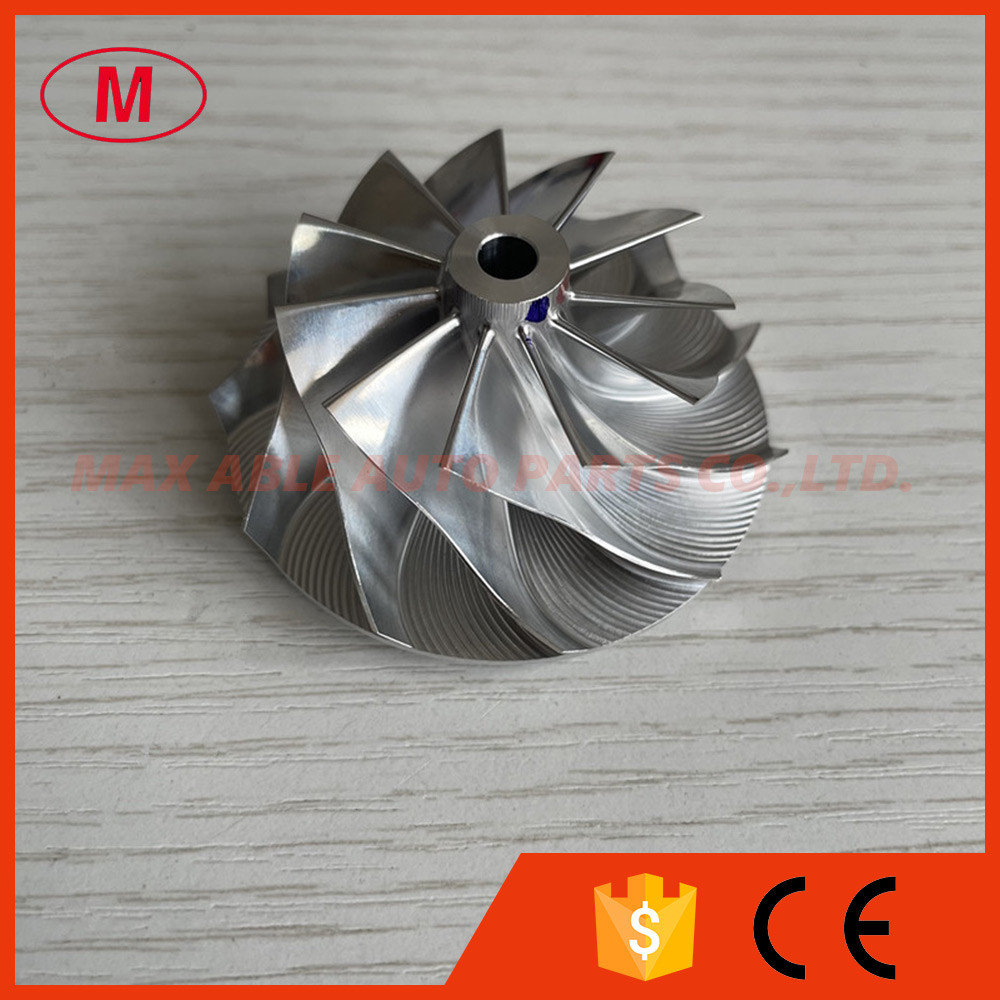

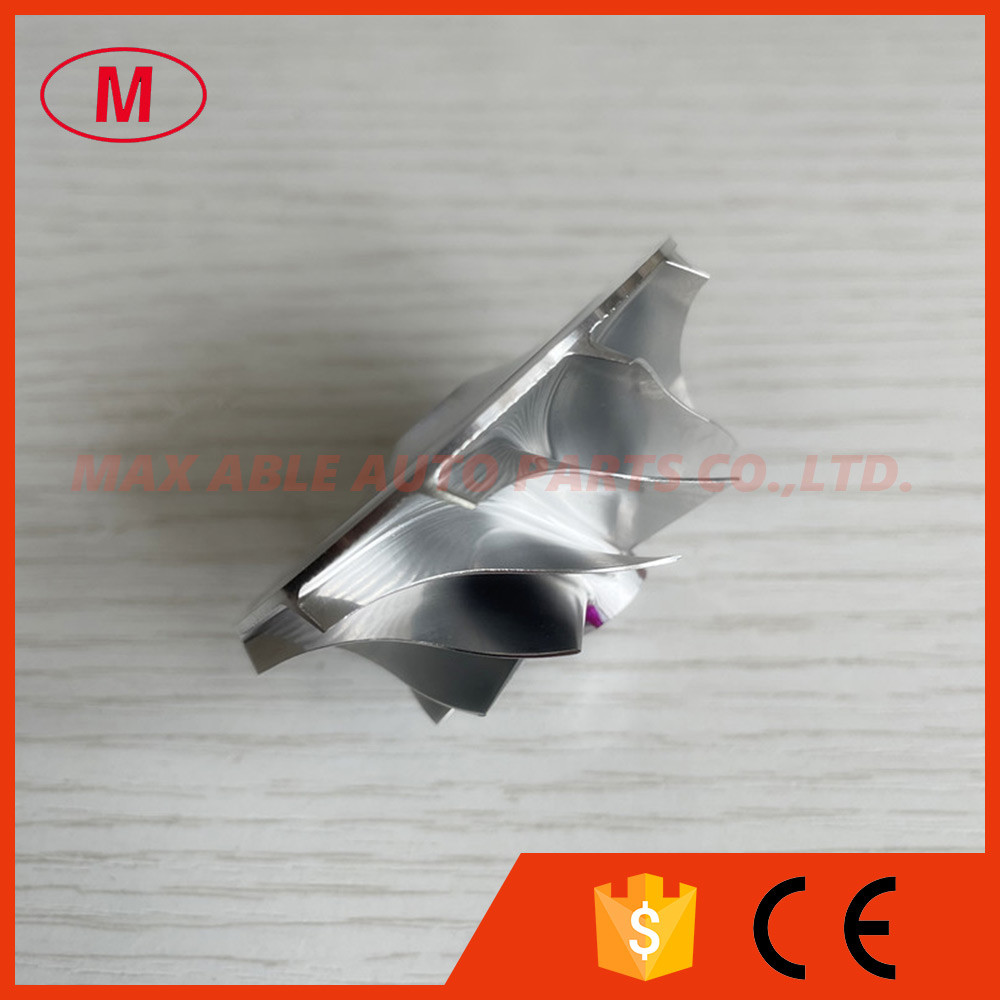

CT10 40.60/55.69mm 17201-0L020HF 11+0 blades turbo milling/aluminum 2618/billet compressor wheel FOR Upgrade 17201-0L020 Images
