BTLA85 83.00/117.55mm 7+7 blades 3036-4, 449207-0003, 753036-0004 point milling Billet compressor wheel for 239-5045

Brand Name : NO

Model Number : BTLA85

Certification : ISO

Place of Origin : CHINA

MOQ : 1PC

Payment Terms : TT ,western union ,paypal

Supply Ability : 1000pcs

Delivery Time : 3-7 days

Packaging Details : neutral packing

Contact Now

1. MODEL:BTLA85 forward

2.BTLA85 83.00/117.55mm 7+7 blades 3036-4, 449207-0003, 753036-0004 point millingTurbocharger Billet/milling/aluminum 2618 compressor wheel

for 239-5045, 10R-1885, 2395045, 1720913, 0R7044, 710024-5006S, 710024-9006S, 710024-0006, 710024-0001 Excavator: 5130B, Off-Highway Truck: 776D, 777, 777B, 777D, Engine: 3508B

3.Size:

Nose diameter:26.50mm

Inducer:83.00mm

Exducer:117.55mm

Tip height:6.66mm

super back:26.97mm

overall height:88.90mm

Blades height:40.00mm

bore size :10.32mm

bore type:Boreless-3/8-16G-LHT

Trailing angle:60 degree

Cutback:6.2mm

splitter height:25.60mm

Sp height angle:10.00

7+7 blades

Forward Rotation

Tapered tip angle:0 degree

It is for OE Compressor housng

4.High quality and competitive price.

5.Any questions please send email to me.

All the compressor wheels have been balanced.

BTLA85 83.00/117.55mm 7+7 blades 3036-4, 449207-0003, 753036-0004 point milling Billet compressor wheel for 239-5045

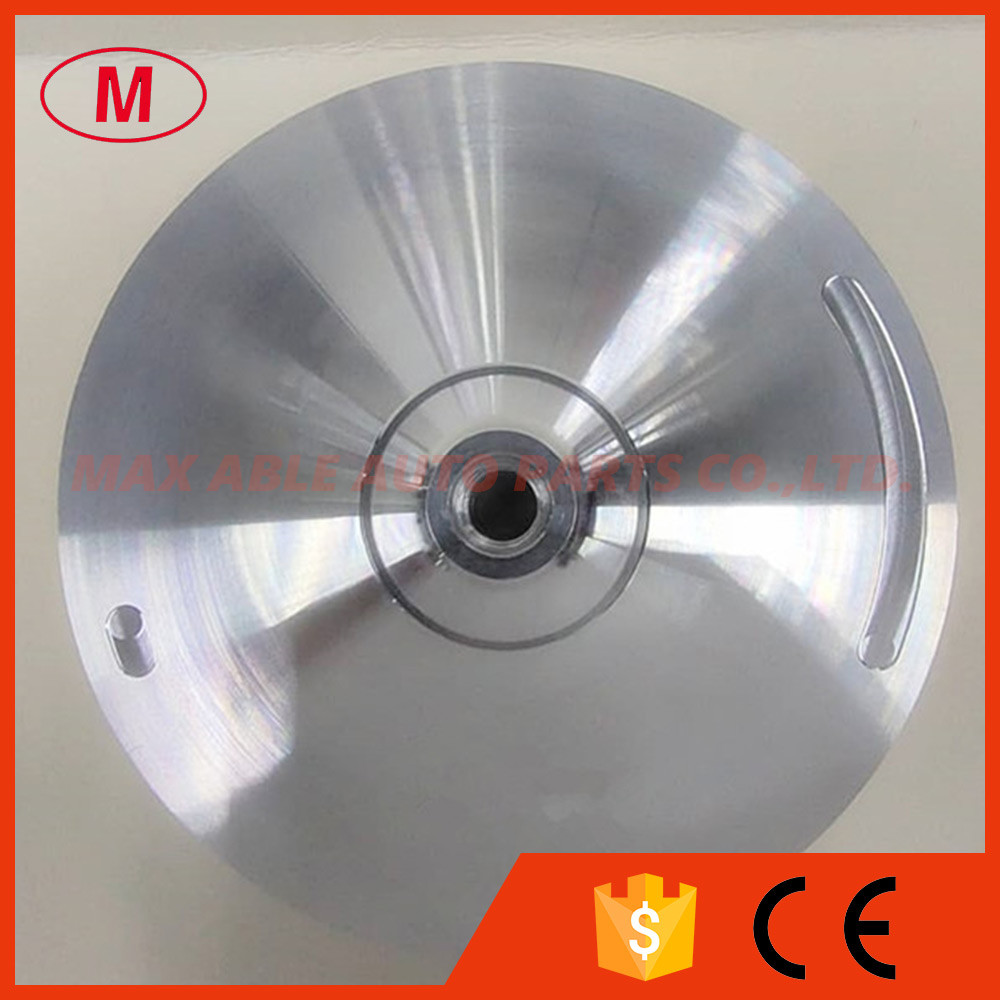

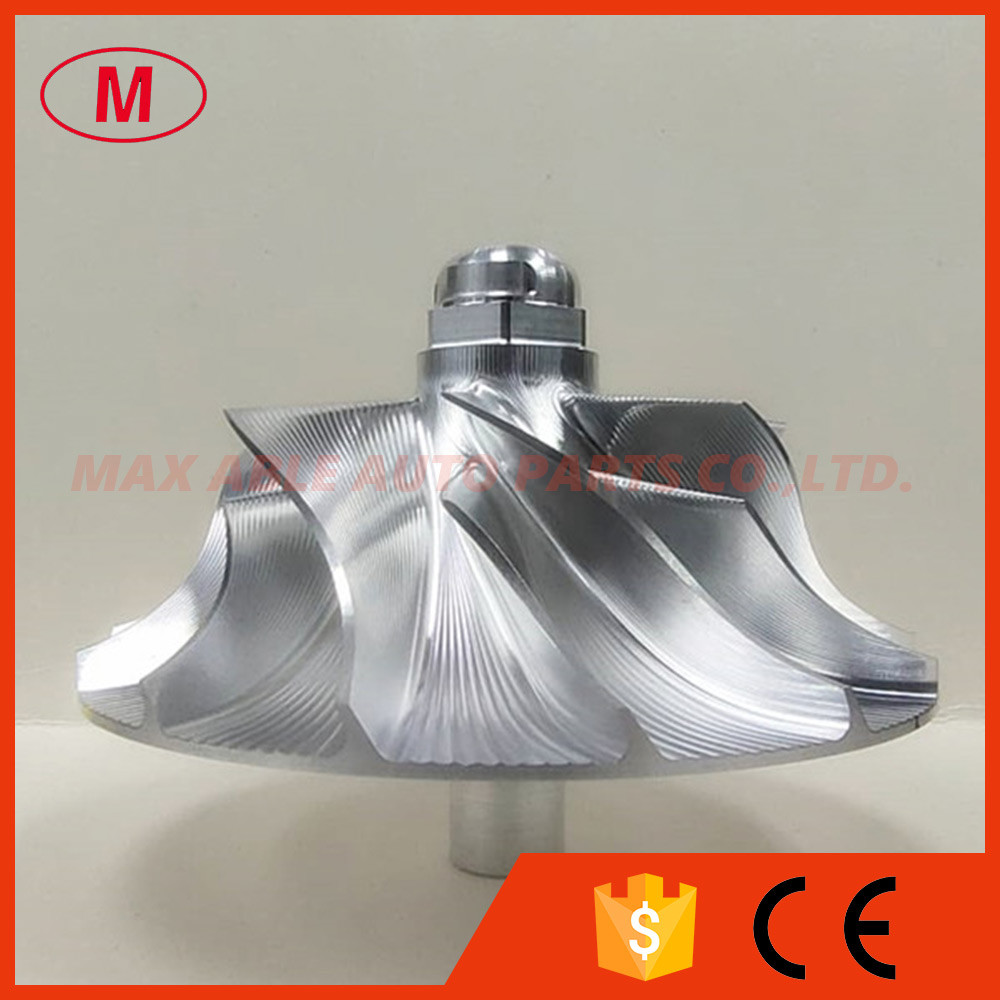

BTLA85 83.00/117.55mm 7+7 blades 3036-4, 449207-0003, 753036-0004 point milling Billet compressor wheel for 239-5045 Images
