K04 reverse 45.09/56.08mm 6+6 blades 5306-123-2216 aluminum 2618/milling/ billet compressor wheel for K0422881 5304-970-0303/0304/0080/0081 TT30 Madza

1.Model:K04 reverse
2.K04 reverse 45.09/56.08mm 6+6 blades 5306-123-2216 aluminum 2618/milling/ billet compressor wheel for K0422881 5304-970-0303/0304/0080/0081 TT30 Madza/Porsche 911 GT2 (997) 2007, 3.6L/BV50-2280 Madza/Porsche 911 GT2 (997) 2007, 3.6L/BV50-2280

3.SIZE:

Nose Diameter:11.36mm

inducer:45.09mm

Exducer:56.08mm

Tapered tip exducer:60.10mm

Tip height:4.48mm

Superback:1.80mm

Overall height:27.63mm

bore size :4.61mm

bore type:through

Trailing angle:60 degree

Cutback:7.0

SP Height angle:-5.50

Blades height:22.22mm

Splitter height:15.50mm

6+6 blades

reverse rotation

Tapered tip angle:30 degree

It is custom size ,please check carefully before buying.

Application:

K0422881

5304-970-0303

5304-970-0304

5304-970-0080

5304-970-0081

4.Good quality and competitive price

5. aluminum 2618/milling/ billet compressor wheel.

6.Please send email to me or talk to me on online ,if you want to know more details.

All the compressro wheel have been balanced.

Skype: maxabledieselparts

Wechat/Whatsapp:+86-18018657719

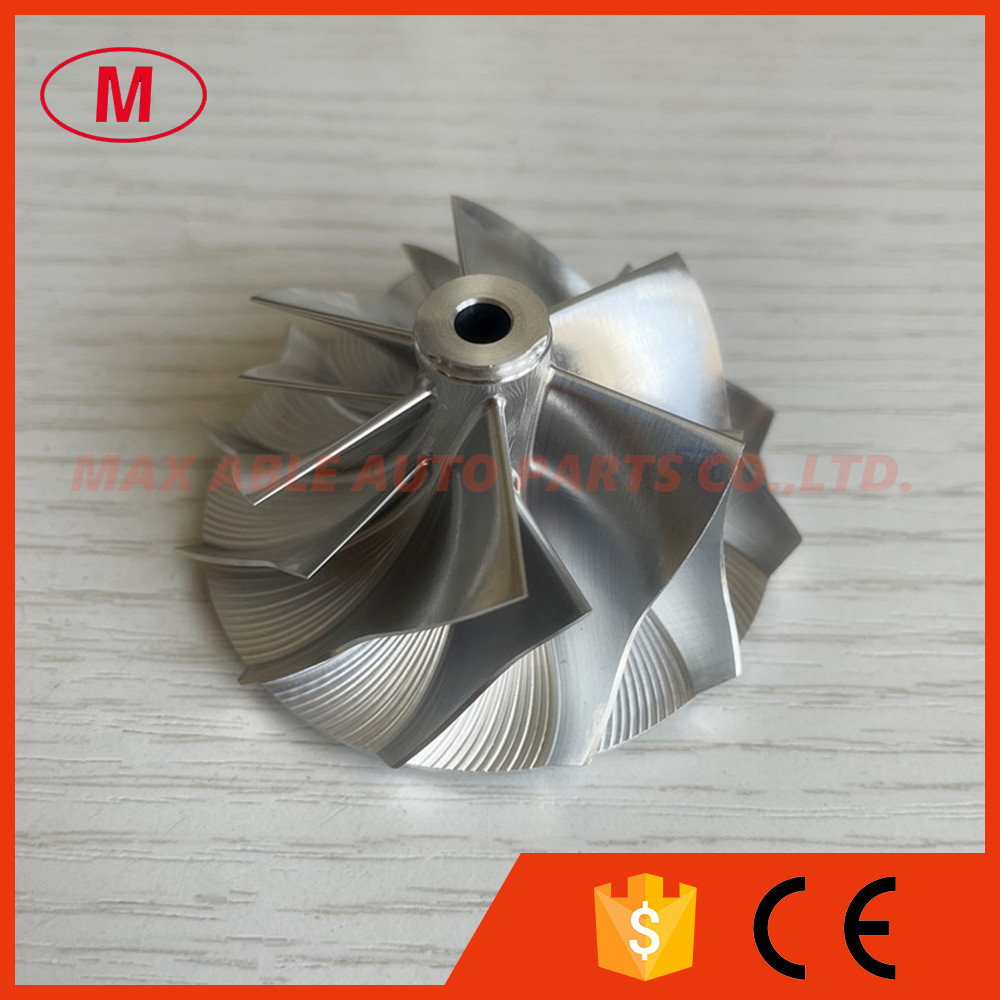

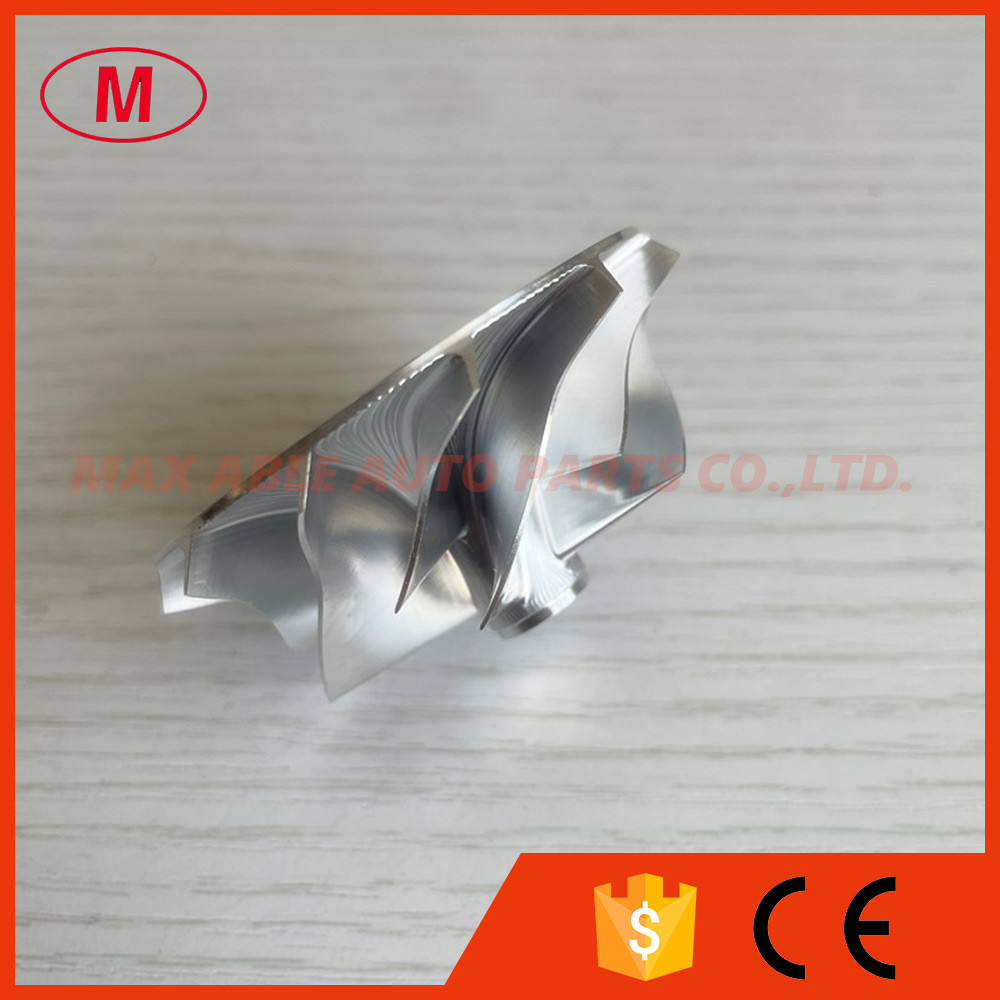

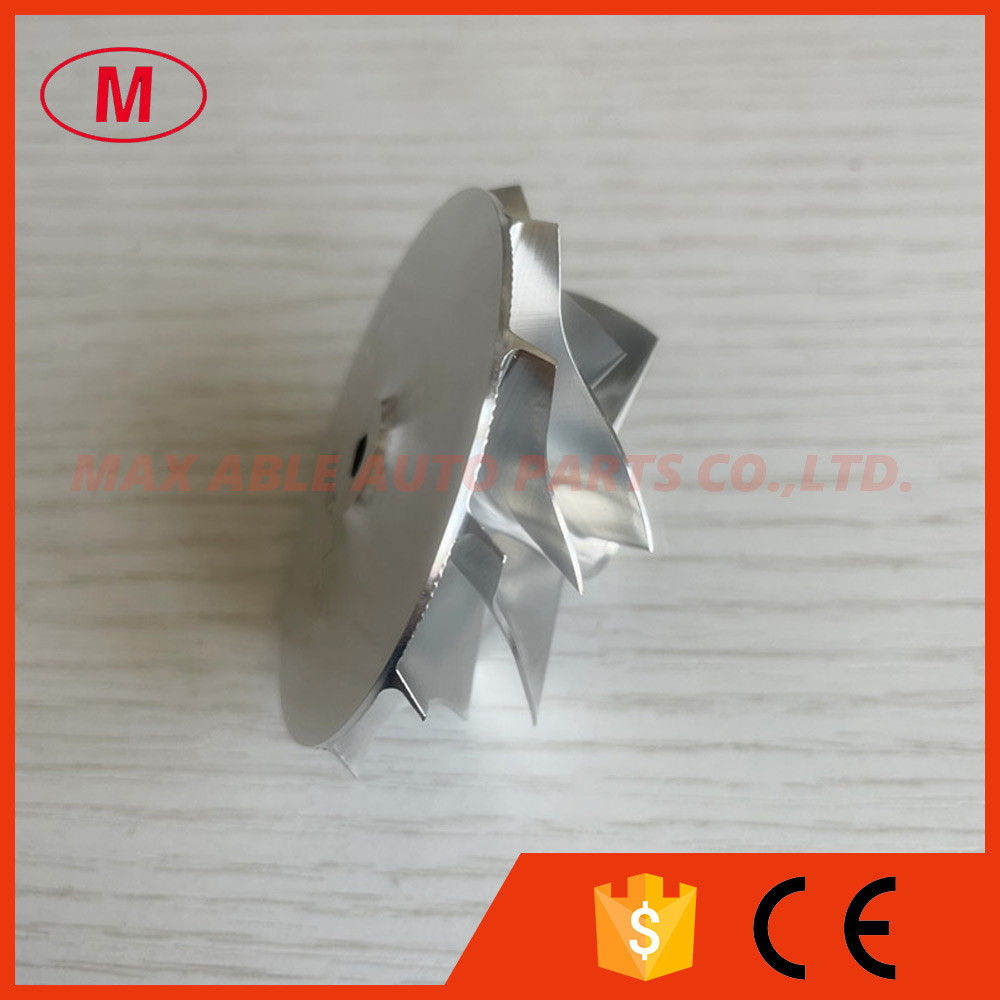

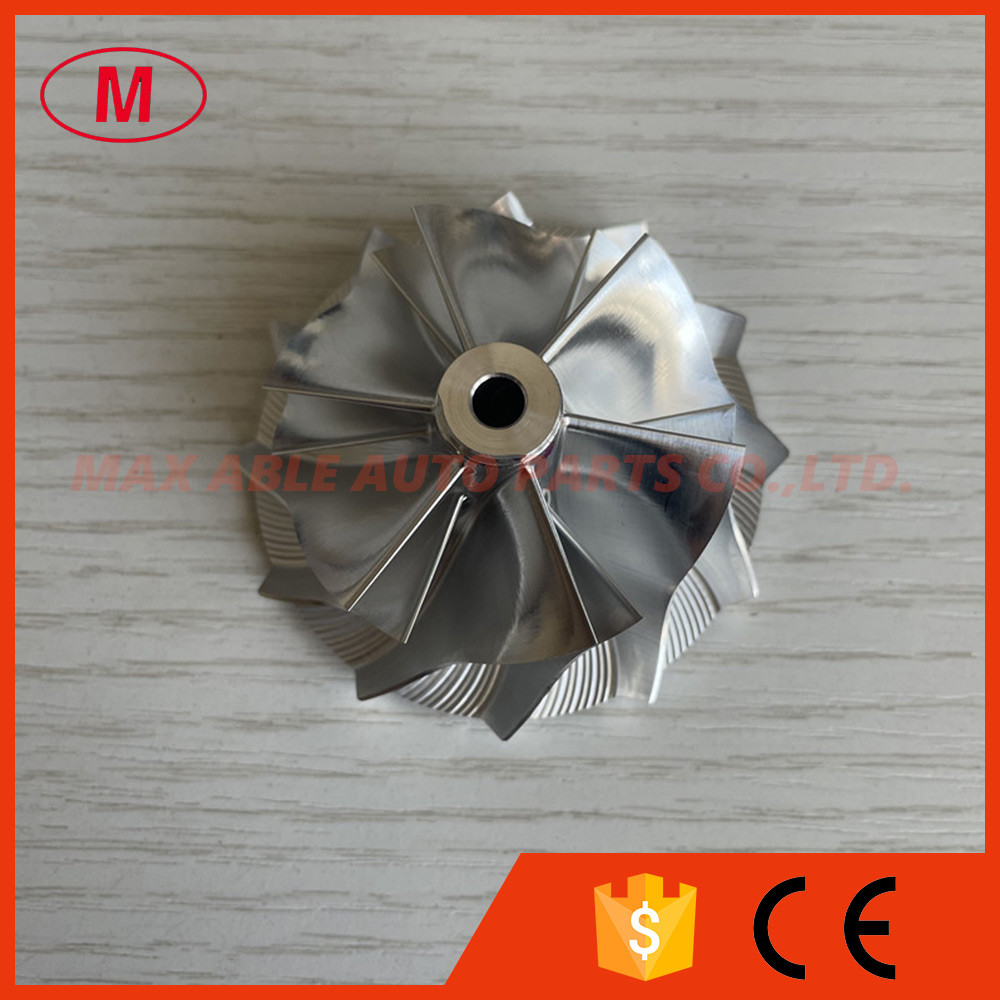

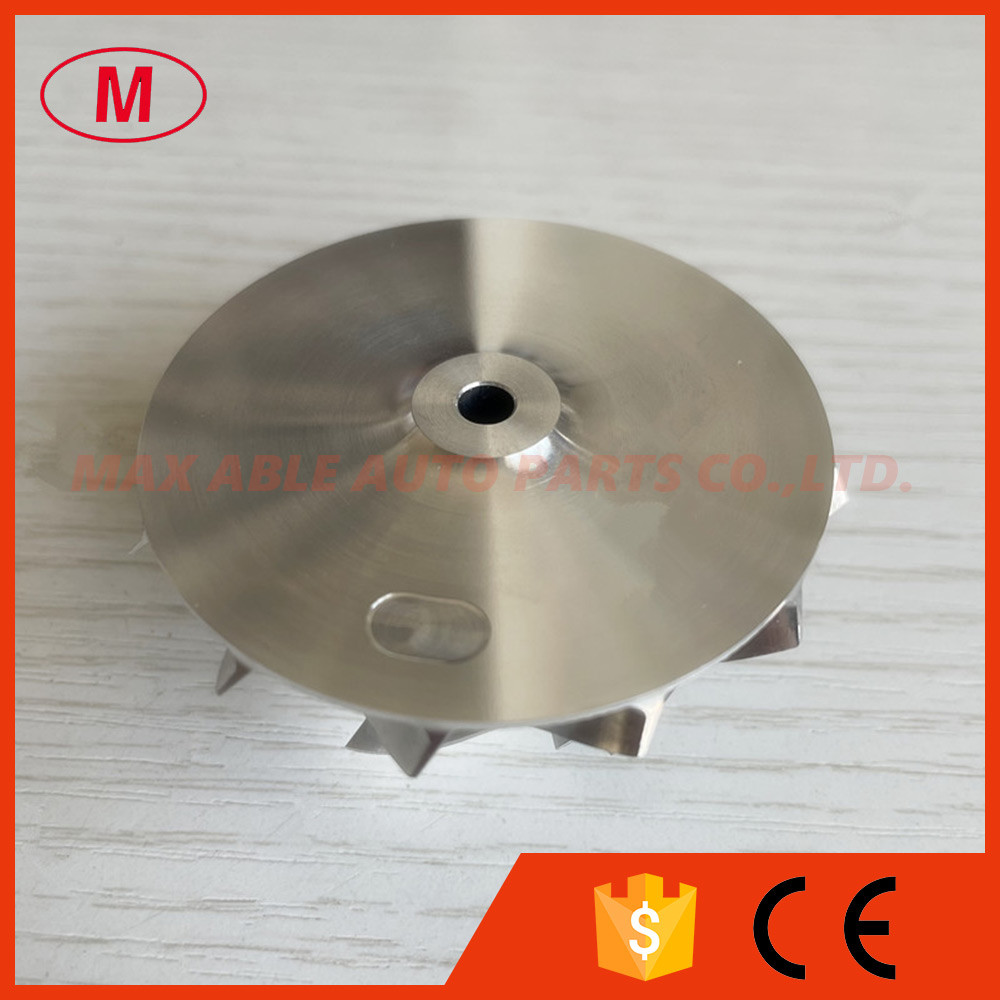

K04 reverse 45.09/56.08mm 6+6 blades 5306-123-2216 aluminum 2618/milling/ billet compressor wheel for K0422881 5304-970-0303/0304/0080/0081 TT30 Madza Images
