TD04 reverse 42.00/56.00mm 6+6 blades high performance turbo milling/aluminum 2618/billet compressor wheel for 49477-02000, 49477-02001, 49477-02002,

China TD04 reverse 42.00/56.00mm 6+6 blades high performance turbo milling/aluminum 2618/billet compressor wheel for 49477-02000, 49477-02001, 49477-02002, wholesale

Brand Name : NO

Model Number : TD04

MOQ : 1PC

Payment Terms : TT ,western union ,paypal

Supply Ability : 1000pcs

Delivery Time : 3-7 days

Packaging Details : neutral packing

Contact Now

1.Model:TD04 reverse

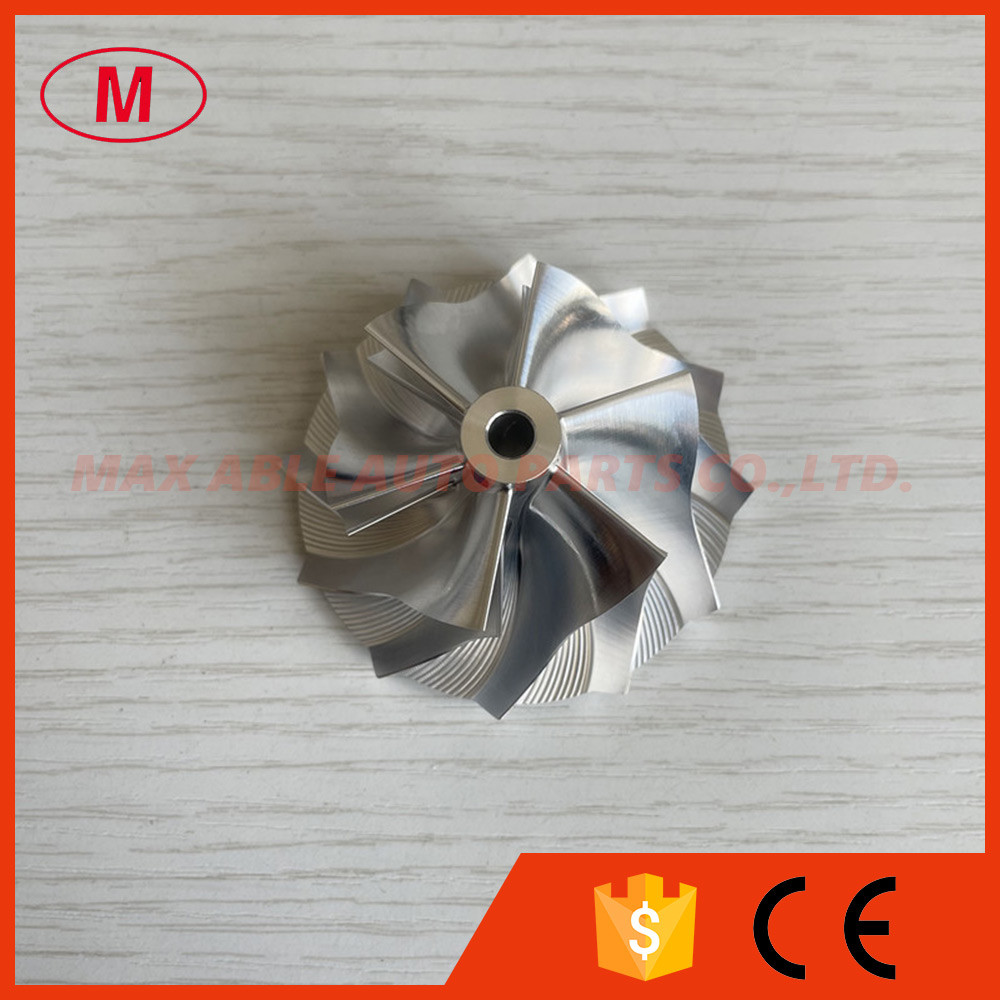

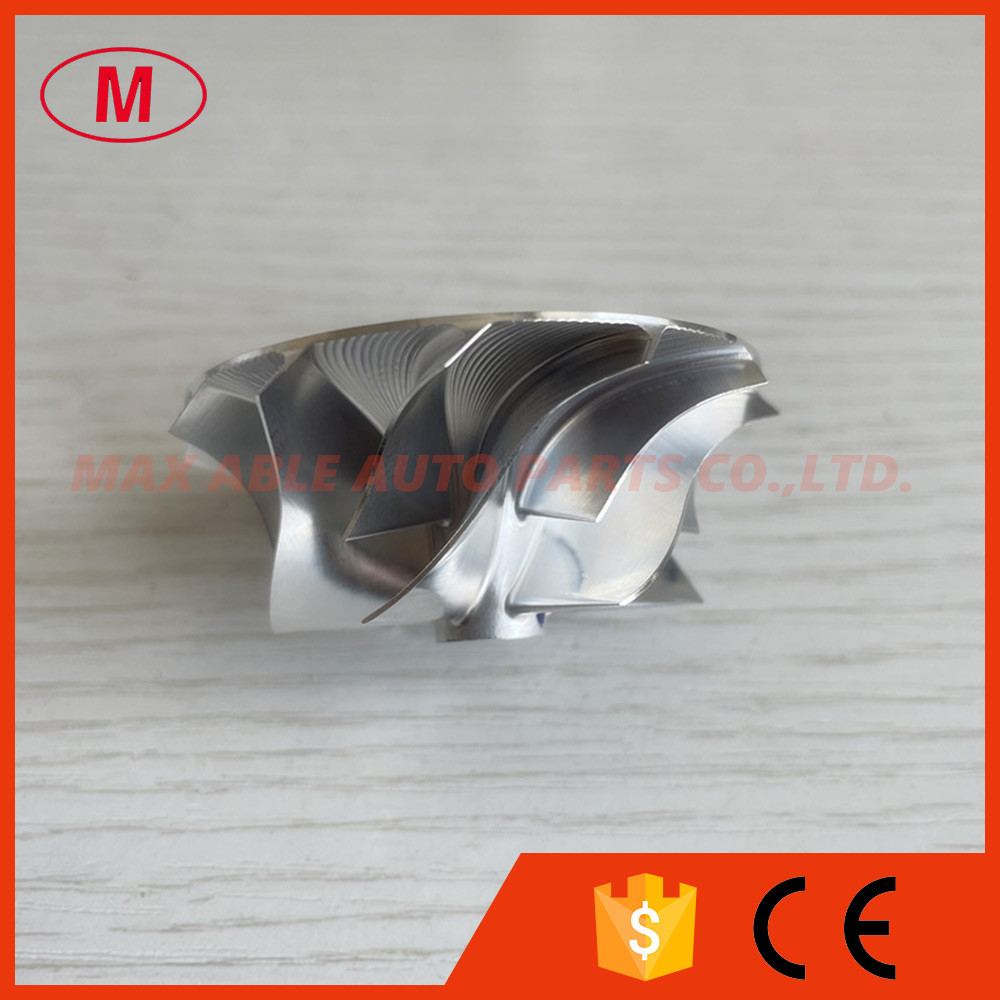

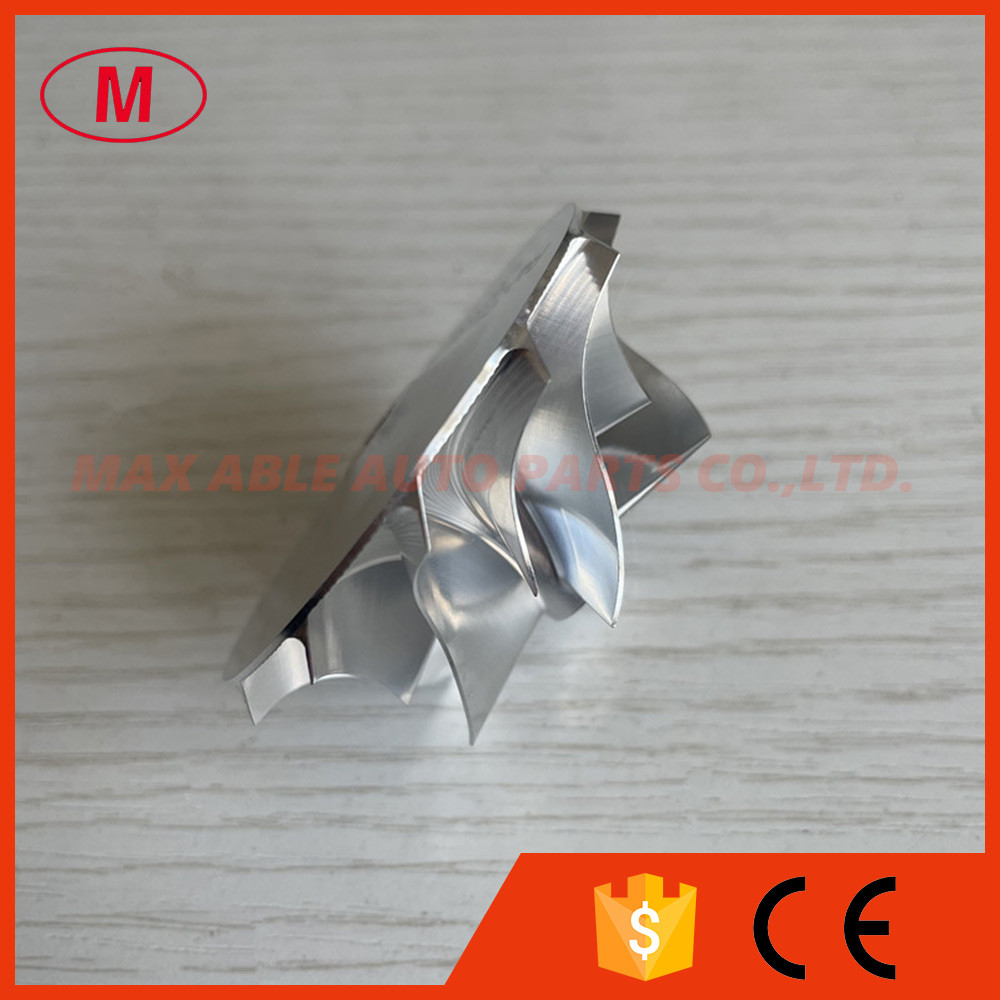

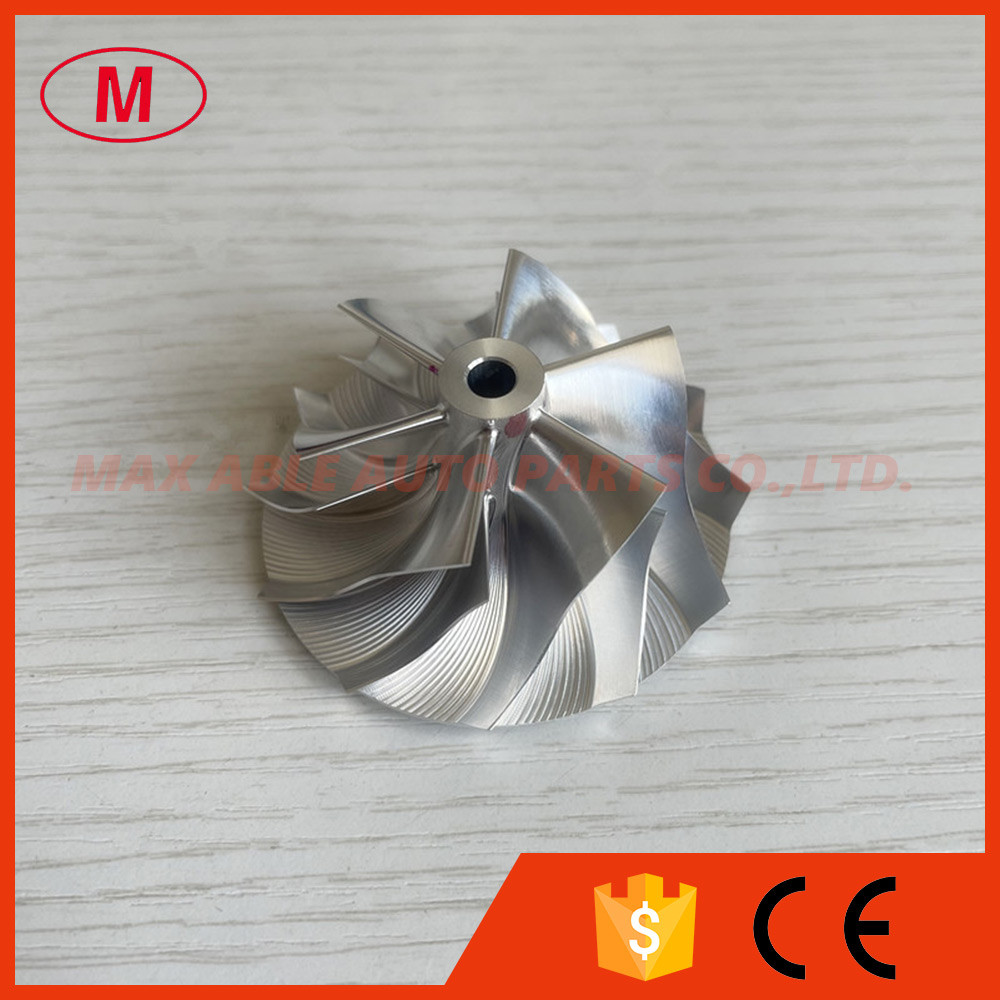

2.TD04 reverse 42.00/56.00mm 6+6 blades high performance turbo billet/milling/aluminum 2618 compressor wheel

for 49477-02000, 49477-02001, 49477-02002, 49477-02003, 49477-02004, 49477-02005, 49477-02006, 49477-02007, 49477-02008, 49477-02010, 49477-02011, 49477-02013, 49477-02016, 49477-02020, 49477-02021, 49477-02022, 49477-02023, 49477-02024, 49477-02051, 49477-02052, 49477-02053, 49477-02054, 49477-02055, 49477-02056, 49477-02057, 49477-02058, 49477-02060, 49477-02061, 49477-02062, 49477-02063, 49477-02070, 49477-02104, 49477-02105, 49477-02106, 49477-02107, 49477-02108, 49477-02120

B-M-W Engine:N20B20A-Euro5/DW12C

3.Size:

Nose diamter:11.00mm

inducer:42.00mm

Exduder:56.00mm

Tapered tip exducer:59.87mm

Tip height:4.36mm

Superback:1.90mm

Overall height:26.20mm

bore size :5.01mm

bore type:through

Trailing Angle:50 degree

Cutback:0.0mm

SP height angle:-10.00

Splitter height:15.50mm

Blades height:22.30mm

It is for OE compressor housing

6+6 blades

reverse rotation

Tapered tip angle:30 degree

4.High quality and competitive price.

5.if you want more details, please send email to me.

We can produce as your requirement.

All the billet compressor wheels have been balanced.

The more models we also have.
