B03G reverse 7+7 blades 57.00/76.00mm high performance turbo milling/aluminum 2618/billet compressor wheel

Product Categories

Max Able Auto Parts Co.,Ltd.

Contact Now

Brand Name : NO

Model Number : B03G

Certification : ISO

MOQ : 1PC

Price : DISCUSS

Payment Terms : T/T, Western Union, MoneyGram,PAYPAL

Supply Ability : 1000PCS

Delivery Time : 3-7 DAYS

Packaging Details : neutral packing

Contact Now

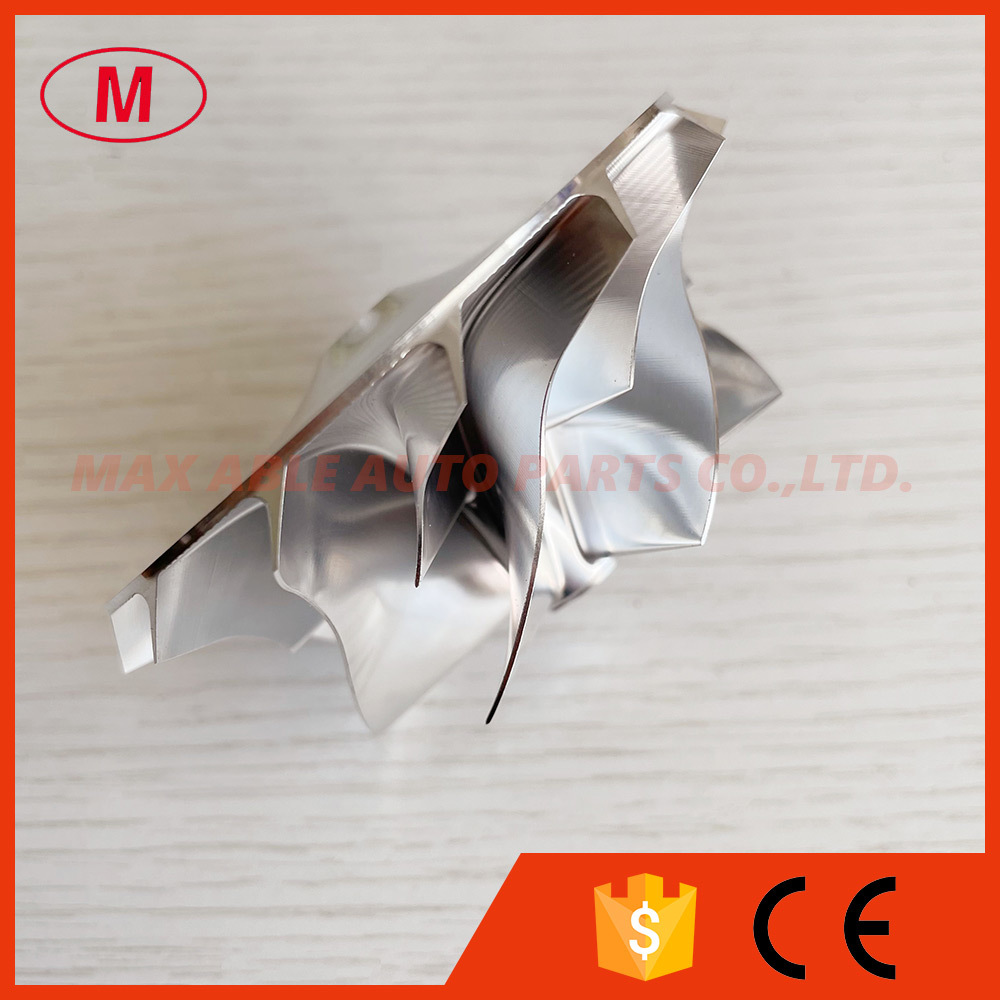

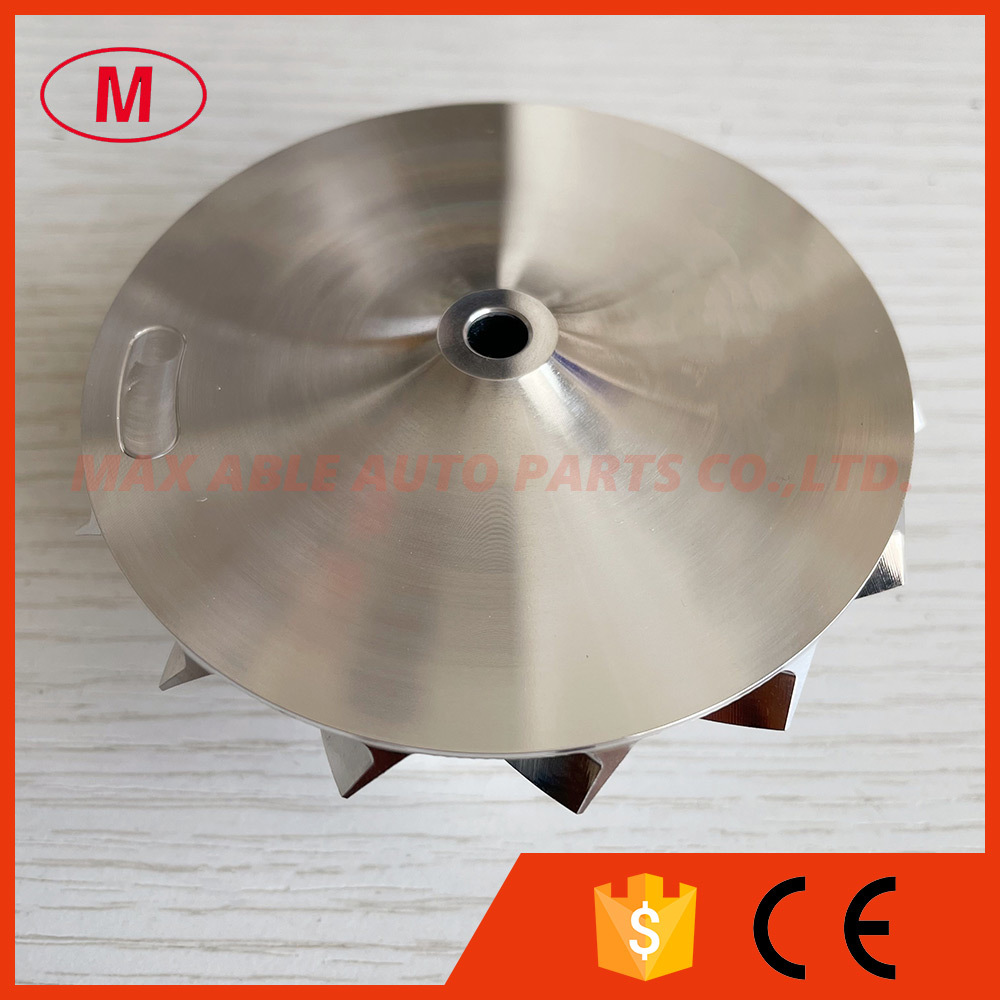

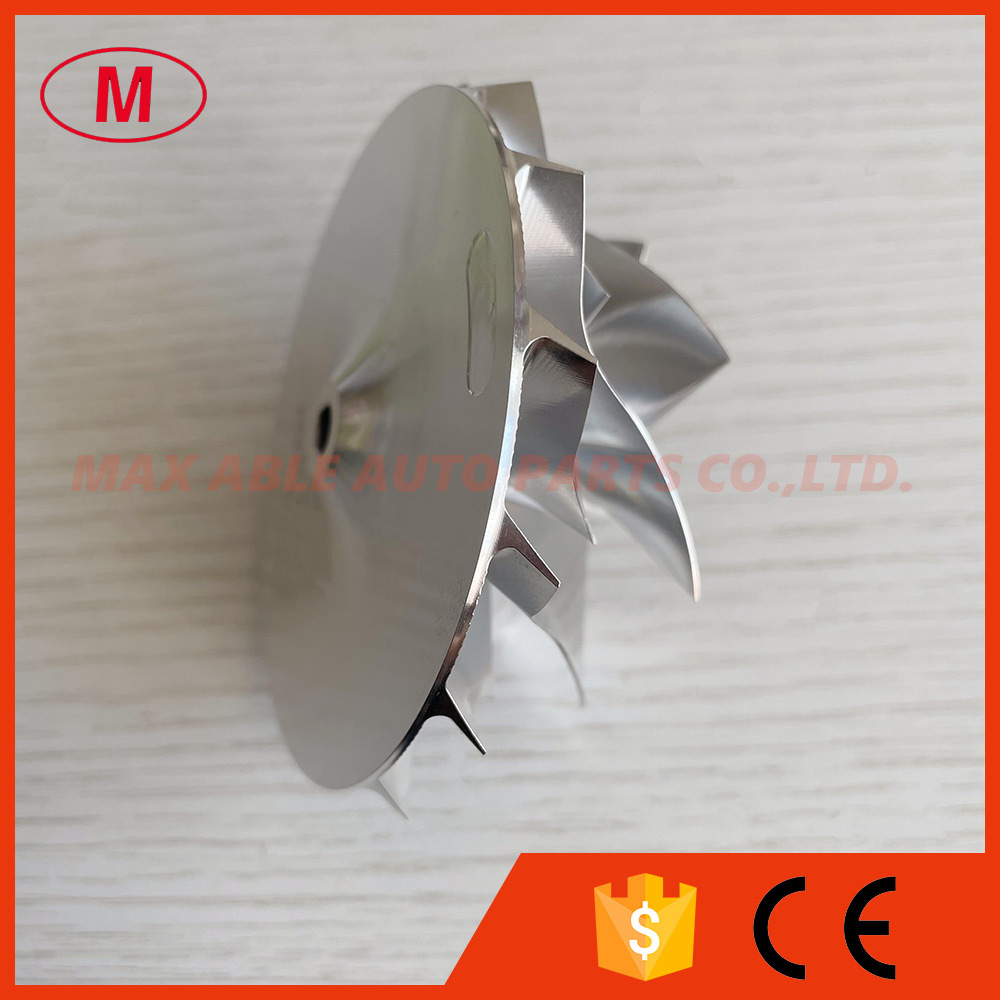

1.B03G reverse 7+7 blades 57.00/76.00mm high performance turbo billet/milling/aluminum 2618 compressor wheel

2.Size:

Nose diameter:12.30mm

inducer:57.00mm

Exducer:76.00mm

Tapered tip exducer:82.00mm

Tip height:6.20mm

Superback:3.79mm

Overall height:37.00mm

Bore size:5.61mm

bore type:through

Trailing angle:50 degree

Cutback:2.0mm

SP Height angle:0.00

Blades height:31.00mm

Splitter height:16.40mm

7+7 blades
reverse rotation
Tapered tip angle:30 degree

It is custom size ,please check carefully before buying.

3.All the compressor wheel have been balanced

4.High quality and competitive price.
